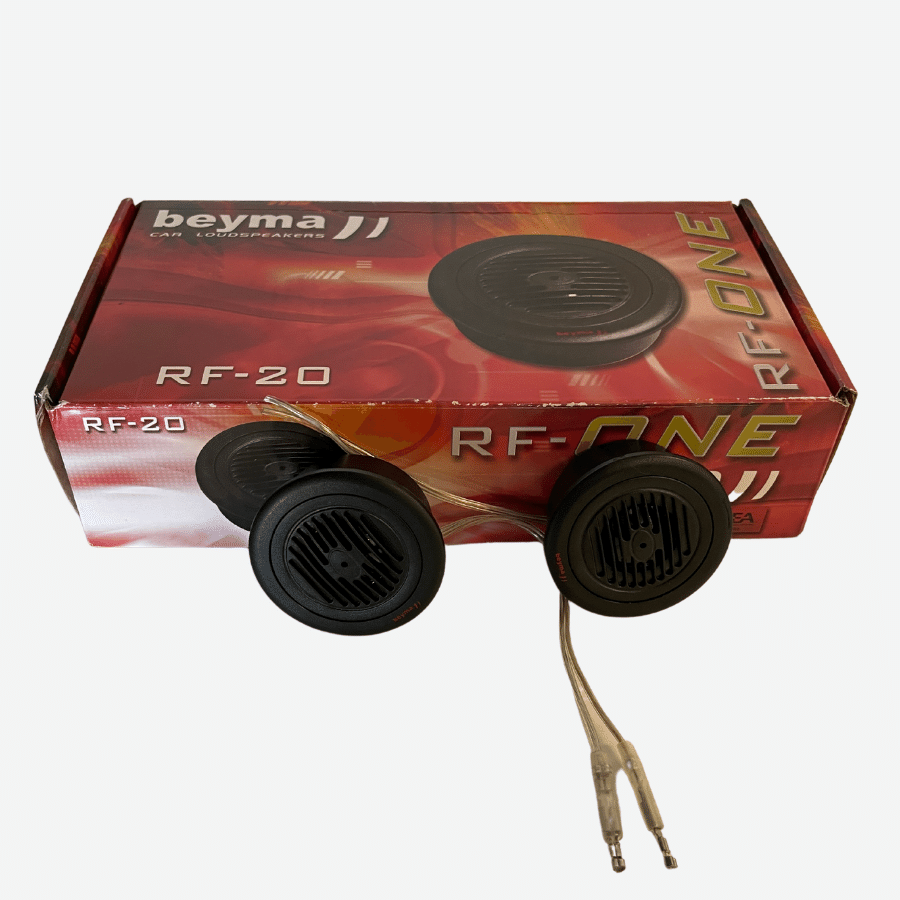

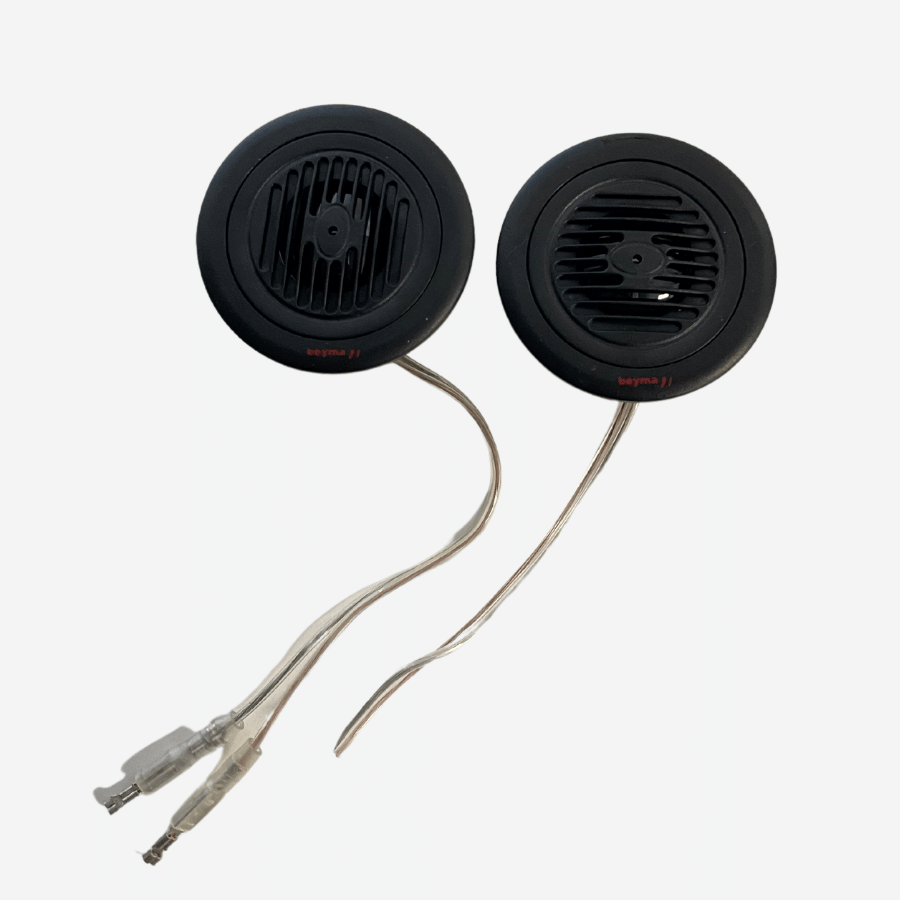

BEYMA RF20 - 1" HIGH FREQUENCY TWEETER

Features:

• High sensitivity (92 dB)
• Extended frequency range (2 - 20 KHz)
• Mylar diaphragm
• Neodymium magnet
• Plastic front cover
• Designed for the high frequencies reproduction

• Peak RMS Per Pair: 40 Watt
• Peak RMS Each: 20 Watt
• Peak Power Per Pair: 80 Watt
• Peak Power Each: 40 Watt
• Nominal impedance: 4 ohms
• Sensitivity: 92 dB / 1w @ 1m
• Frequency range: 2 - 20 kHz
• Recommended crossover frequency: 3.5 kHz, 12 dB/oct.
• Resonant frequency, fs: 2 kHz
• Voice coil diameter: 25.8 mm. / 1.02 in.
• Diaphragm material: Mylar

• Overall diameter: 55 mm. / 2.17 in.
• Depth: 18.5 mm. / 0.73 in.
• Baffle cutout dimensions: 46 mm. / 1.81 in.
